Removal [10/2022 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 22 [11/2023 - ]

  2. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 3 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  3. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 9 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 9 [11/2023 - ]

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 25 [11/2023 - ]

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL (for 8 Inch Display)
    1. Disengage the 9 claws.

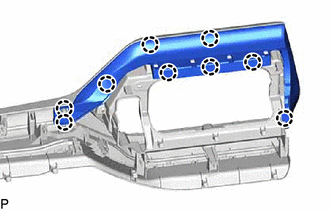

      GTY915926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

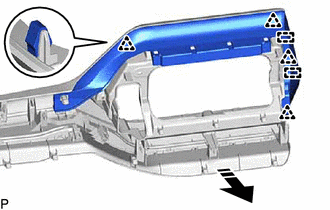

    2. Disengage the 2 guides and 4 clips as shown in the illustration to remove the upper instrument cluster finish panel.
      GTY880752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL (for 12.3 Inch Display)

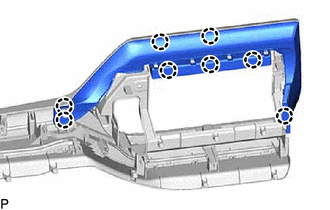

    1. Disengage the 8 claws.
      GTY915930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

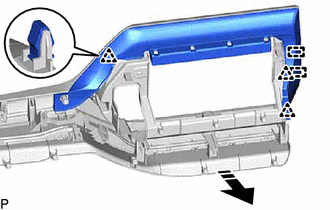

    2. Disengage the 2 guides and 3 clips as shown in the illustration to remove the upper instrument cluster finish panel.
      GTY933128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL END
    1. Remove the 3 screws.

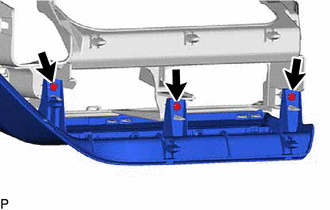

      GTY944986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

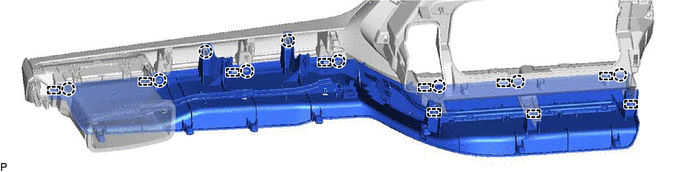

    2. Disengage the 9 claws and 10 guides to remove the instrument cluster finish panel end.
      GTY923426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 CENTER INSTRUMENT CLUSTER FINISH PANEL (for LH Side)
    1. Disengage the 7 claws to remove the No. 1 center instrument cluster finish panel.

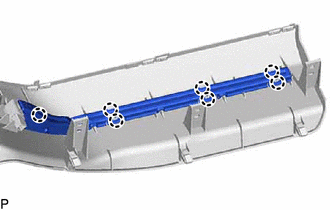

      GTY923425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for LH Side)

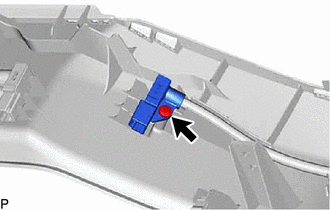

    1. Remove the screw and No. 1 interior illumination light assembly.
      GTY923424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INTERIOR ILLUMINATION LIGHT LENS (for LH Side)

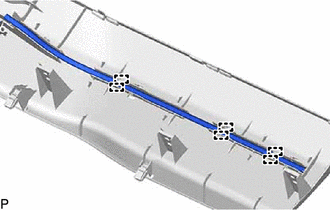

    1. Disengage the 6 guides to remove the interior illumination light lens.
      GTY944985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 CENTER INSTRUMENT CLUSTER FINISH PANEL (for RH Side)

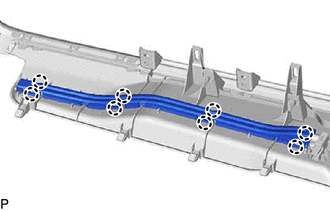

    1. Disengage the 8 claws to remove the No. 2 center instrument cluster finish panel.
      GTY923456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for RH Side)

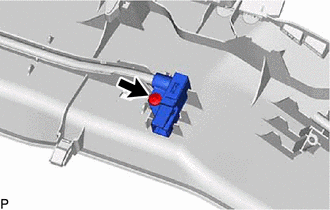

    1. Remove the screw and No. 1 interior illumination light assembly.
      GTY923455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE INTERIOR ILLUMINATION LIGHT LENS (for RH Side)
    1. Disengage the 8 guides to remove the interior illumination light lens.

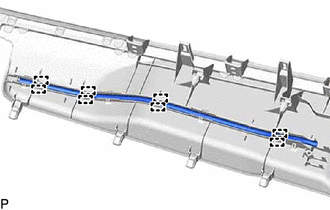

      GTY923454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
