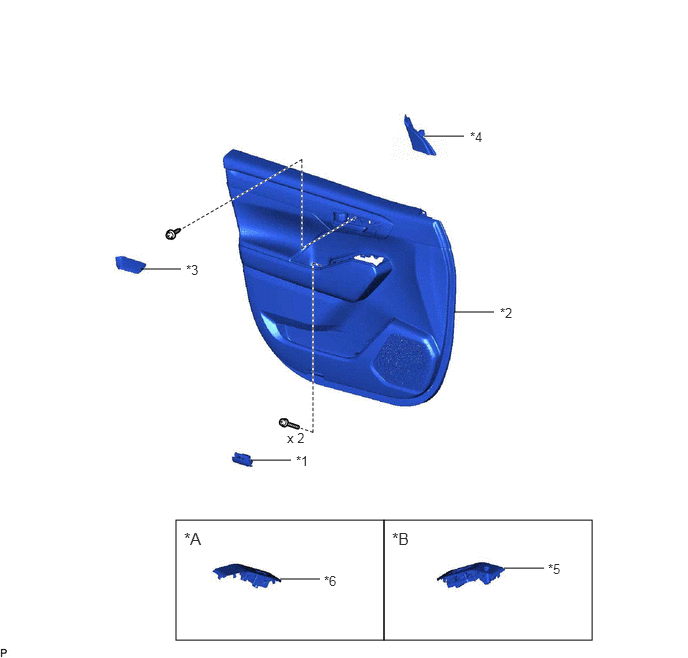

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Front Passenger Side | *B | for Driver Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT DOOR AMBIENT LIGHT (FRONT DOOR TRIM BOARD SUB-ASSEMBLY) |
| *3 | FRONT DOOR INSIDE HANDLE BEZEL | *4 | FRONT DOOR LOWER FRAME BRACKET GARNISH |
| *5 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *6 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
