Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

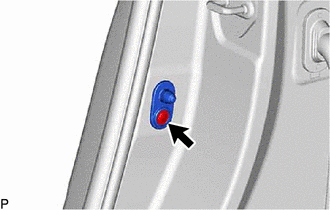

    1. Using a T30 "TORX" socket wrench, remove the screw.
      GTY923460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the front door courtesy light switch assembly.
