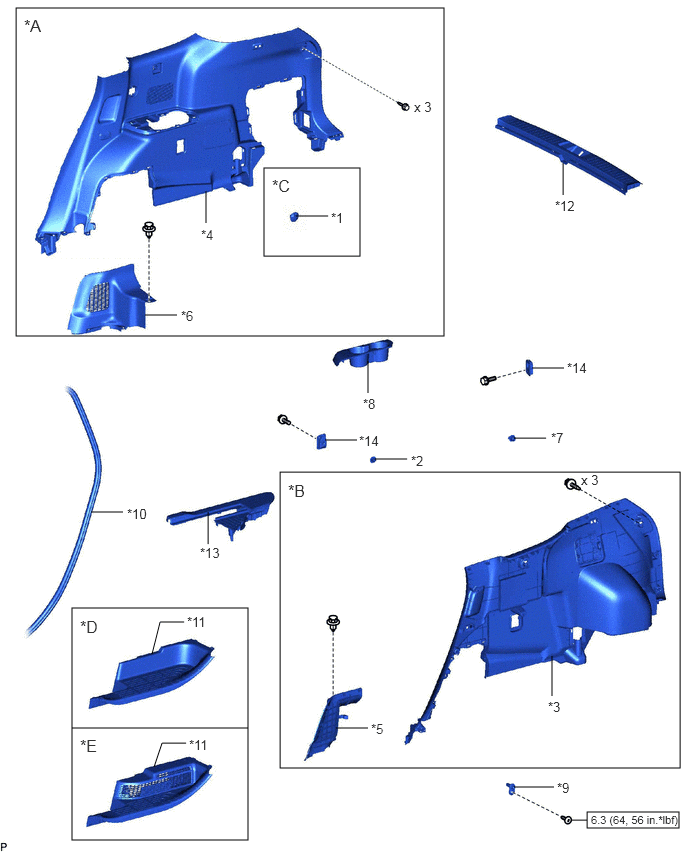

| *A |
for RH Side |
*B |
for LH Side |
| *C |
w/ Rear Automatic Air Conditioning System |
*D |
for Gasoline Model |
| *E |
for HV Model |
- |
- |
| *1 |
COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR |
*2 |
DECK TRIM POCKET COVER |
| *3 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
*4 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
| *5 |
FRONT DECK SIDE TRIM COVER LH |
*6 |
FRONT DECK SIDE TRIM COVER RH |
| *7 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
*8 |
NO. 2 DECK SIDE TRIM COVER |
| *9 |
REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY |
*10 |
REAR DOOR OPENING TRIM WEATHERSTRIP |
| *11 |
REAR DOOR SCUFF PLATE |
*12 |
REAR FLOOR FINISH PLATE |
| *13 |
REAR OUTER SEAT TRACK BRACKET COVER |
*14 |
ROPE HOOK |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
