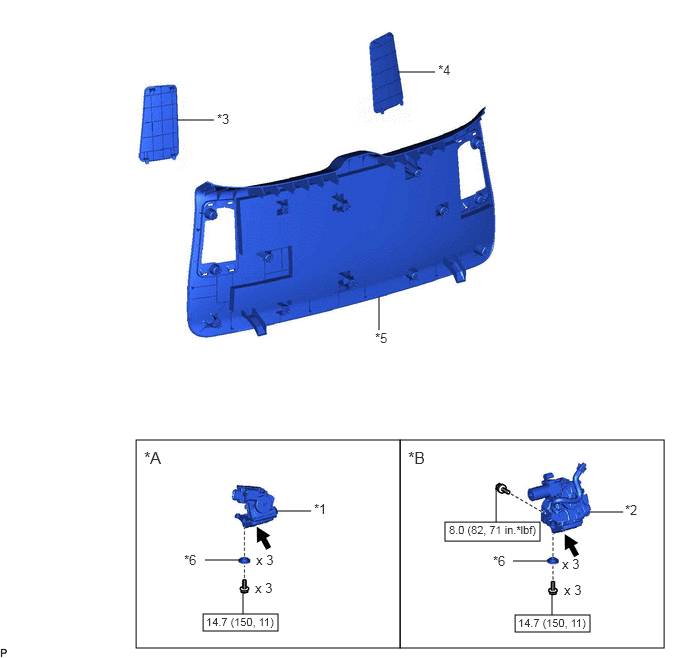

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Power Back Door | *B | w/ Power Back Door |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |
| *3 | BACK DOOR SERVICE HOLE COVER LH | *4 | BACK DOOR SERVICE HOLE COVER RH |
| *5 | BACK DOOR TRIM PANEL ASSEMBLY | *6 | BUSH |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
MP grease |
