Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR

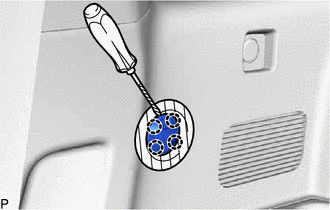

    1. Apply protective tape around the cooler (No. 2 room temp. sensor) thermistor.
      GTY931010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a screwdriver, disengage the 4 claws to disconnect the cooler (No. 2 room temp. sensor) thermistor.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connector to remove the cooler (No. 2 room temp. sensor) thermistor.
