Removal [12/2019 - ]: Procedure

  1. REMOVE RAIN SENSOR COVER
    1. Release the stopper by pulling it out as shown in the illustration.
      GTY839633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      Release
      Remove in this Direction
    2. Disconnect the rain sensor with rain sensor cover from the windshield glass as shown in the illustration.

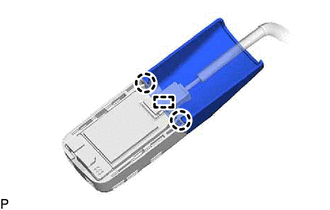

    3. Disengage the 2 claws and guide to remove the rain sensor cover.
      GTY916441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RAIN SENSOR
    1. Disconnect the connector to remove the rain sensor.
      GTY943436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
