Components [10/2022 - ]

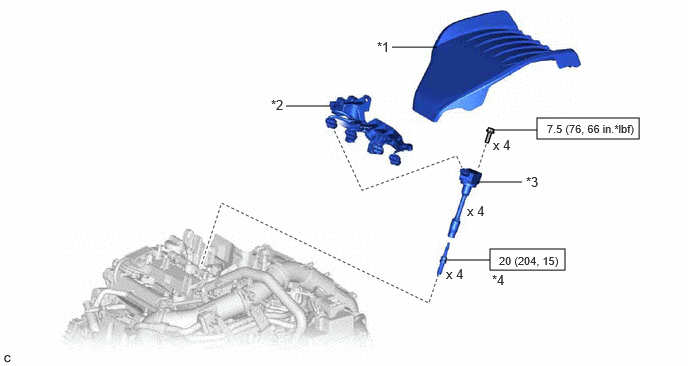

Fig 1: T24A-FTS Spark Plug Replacement Components With Torque Specifications [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE COVER SUB-ASSEMBLY	*2	ENGINE WIRE
*3	IGNITION COIL ASSEMBLY	*4	SPARK PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
