Removal [10/2022 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 23 [11/2023 - ]

  2. DISCONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 2

  3. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 3

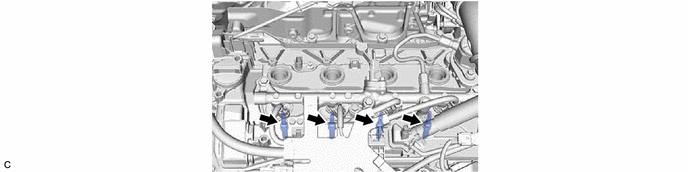

  4. REMOVE SPARK PLUG
    NOTE:

    If a spark plug has been struck or dropped, replace it.

    1. GTY1077403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
