Components [12/2019 - ]

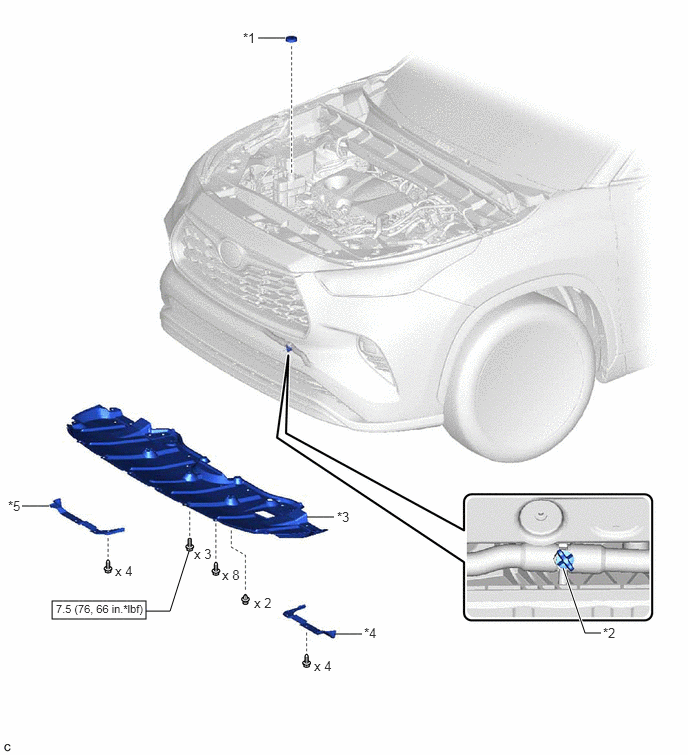

Fig 1: Coolant (For Inverter) Replacement Components With Torque Specifications
GTY874466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RESERVE TANK CAP *2 DRAIN COCK PLUG
*3 NO. 1 ENGINE UNDER COVER ASSEMBLY *4 FRONT WHEEL OPENING EXTENSION PAD LH
*5 FRONT WHEEL OPENING EXTENSION PAD RH - -
N.m (kgf/cm, ft.lbf): Specified torque - -
