Components [10/2022 - ]

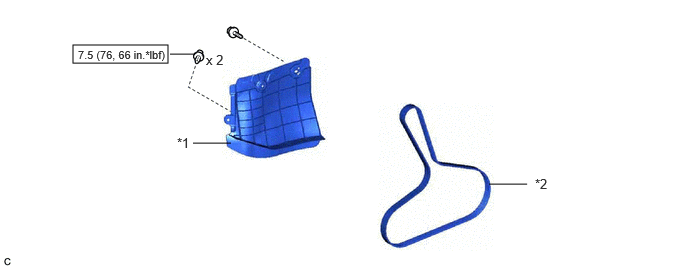

Fig 1: T24A-FTS Drive Belt Replacement Components With Torque Specifications [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FENDER APRON SEAL RH	*2	V-RIBBED BELT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
