Removal [10/2022 - ]: Procedure

  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 12 [11/2023 - ]

  2. REMOVE V-RIBBED BELT

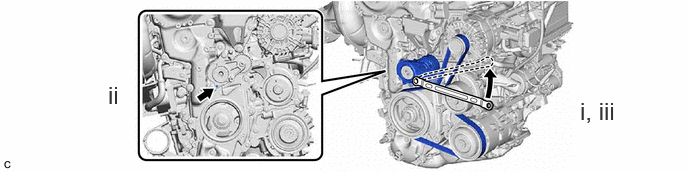

    1. GTY1180935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
      3. Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
