Installation [10/2022 - ]: Procedure

HINT:

When reusing the V-ribbed belt, check the ribs and back of the V-ribbed belt for wear and cracks. If wear or a crack that reaches the core (at more than 1 point) is found, replace the V-ribbed belt.

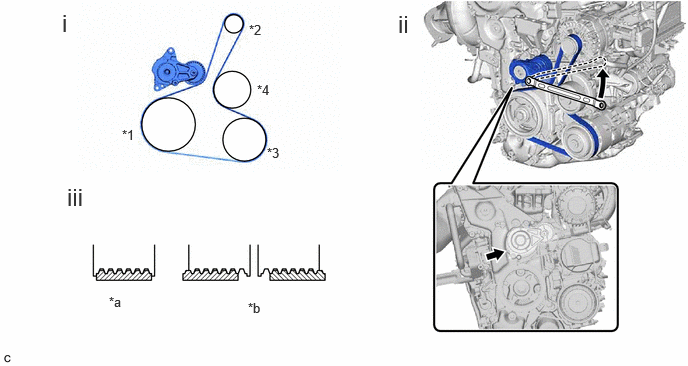

1. Fig 1: Engine Drive Belt Routing Diagram (T24A-FTS)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Crankshaft Pulley Assembly	*2	Generator Assembly
   *3	Compressor with Motor Assembly	*4	Engine Water Pump Assembly
   *a	Correct	*b	Incorrect

   1. Set the V-ribbed belt onto each pulley as shown in the illustration.
   2. Turn the V-ribbed belt tensioner assembly counterclockwise and remove the 5 mm hexagon wrench.
   3. After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Confirm that the V-ribbed belt has not slipped out of the grooves on the bottom of the pulley by hand.

Refer to PROCEDURE - Step 83 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 83 [11/2023 - ]
