2GR-FKS Drive Belt
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

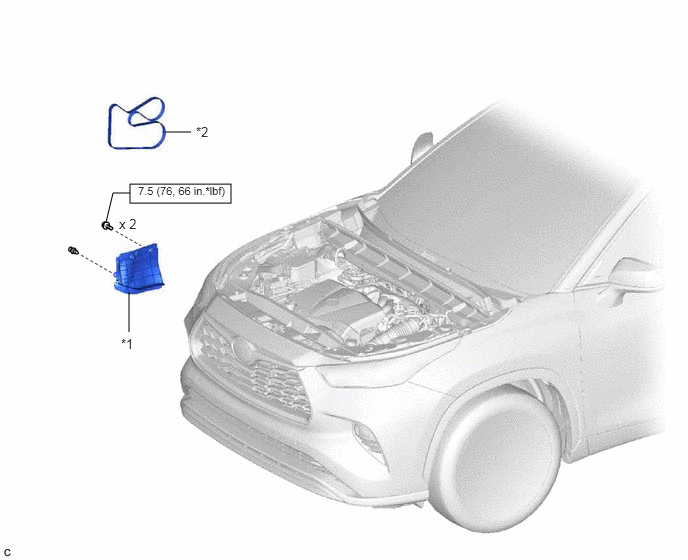

Fig 1: 2GR-FKS Drive Belt Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
FRONT FENDER APRON SEAL RH
*2
V-RIBBED BELT
N.m (kgf/cm, ft.lbf): Specified torque
-
-
