Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 16 [09/2020 - 10/2022]

  3. REMOVE V-RIBBED BELT

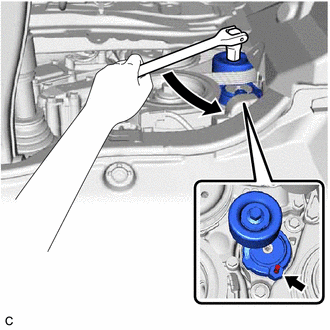

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      GTY862327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
