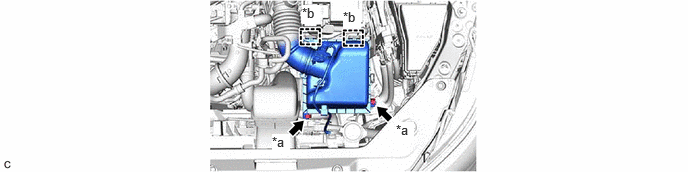

  1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY
    1. GTY1107941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Air Cleaner Cap Clamp *b Guide

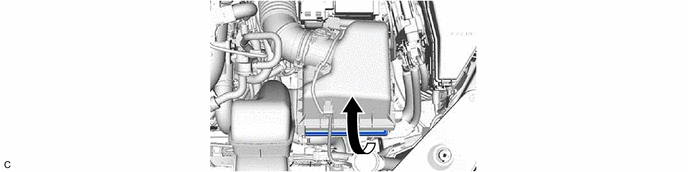

  2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
    NOTE:

    Do not allow foreign matter to enter the air cleaner cap sub-assembly and air cleaner case sub-assembly.

    1. GTY1106993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    HINT:

    This procedure is only performed when the air cleaner filter element sub-assembly will be reused.

    1. GTY1104622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Air Cleaner Filter Element Sub-assembly Intake Downstream Side (Air Cleaner Cap Sub-assembly Side) - -
      1. If the air cleaner filter element sub-assembly is dirty or has foreign matter adhered to it, clean the air cleaner filter element sub-assembly with compressed air.
        NOTE:

        When cleaning the air cleaner filter element sub-assembly, blow the compressed air from the intake downstream side (from the air cleaner cap sub-assembly side).

      2. If the air cleaner filter element sub-assembly is still extremely dirty after cleaning it, replace the air cleaner filter element sub-assembly with a new one.
