Removal [12/2019 - ]: Procedure

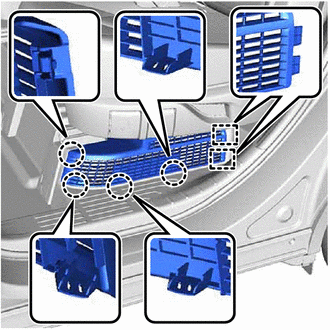

  1. REMOVE REAR DOOR SCUFF PANEL LH
    1. Disengage the 4 claws.
      GTY934900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the rear door scuff panel LH.

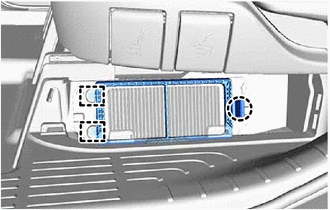

  2. REMOVE NO. 1 HV BATTERY INTAKE COVER
    1. Disengage the claw.
      GTY877847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the No. 1 HV battery intake cover from the No. 3 hybrid battery intake duct.
  3. REMOVE NO. 2 HV BATTERY INTAKE FILTER

    HINT:

    If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, inspect the No. 2 HV battery intake filter.

    Refer to INSPECTION [12/2019 - ]

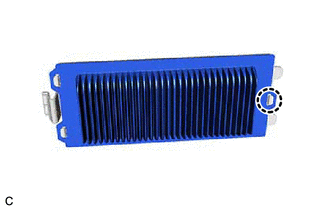

    1. Disengage the claw.
      GTY934901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

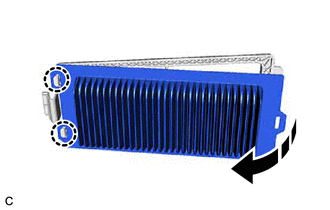

    2. Disengage the 2 claws to remove the No. 2 HV battery intake filter from the No. 1 HV battery intake cover as shown in the illustration.
      GTY877850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
