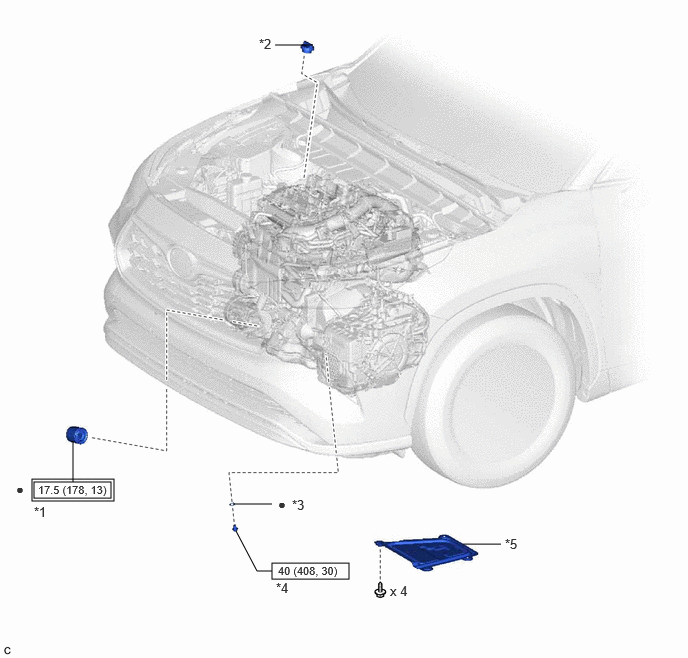

Components [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL FILTER SUB-ASSEMBLY | *2 | OIL FILLER CAP SUB-ASSEMBLY |
| *3 | GASKET | *4 | OIL PAN DRAIN PLUG |
| *5 | CENTER NO. 4 ENGINE UNDER COVER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |
