Components [12/2019 - ]

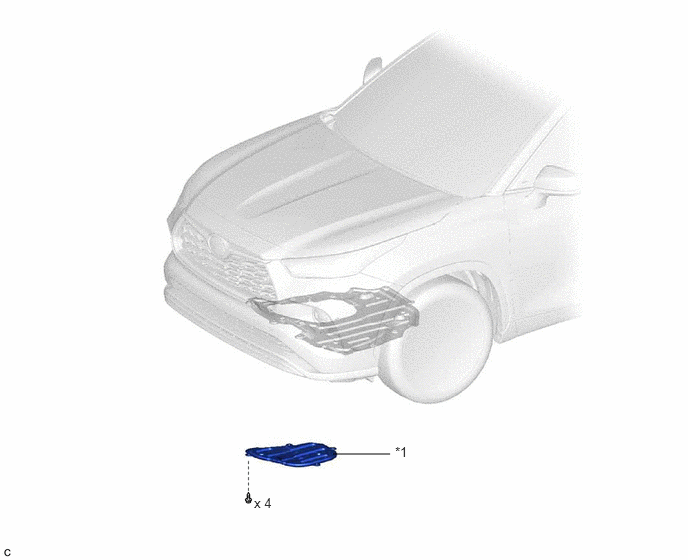

Fig 1: A25A-FXS Oil And Oil Filter Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER NO. 4 ENGINE UNDER COVER	-	-

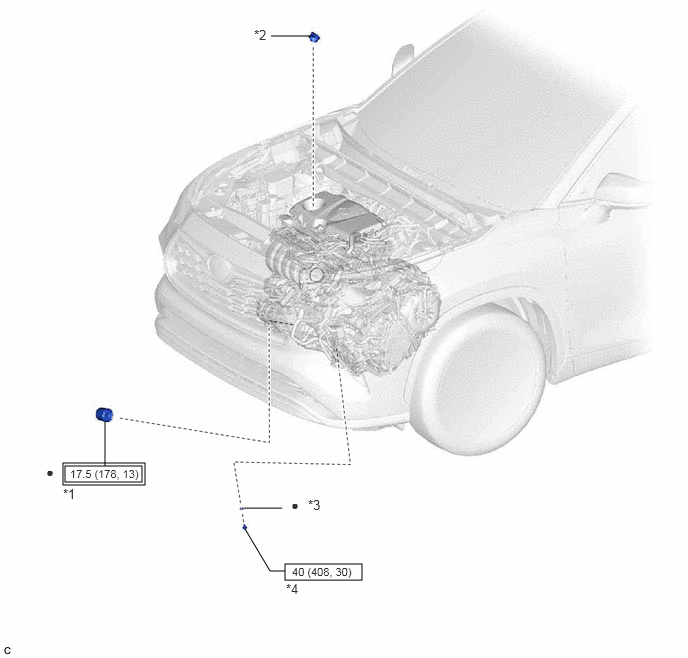

Fig 2: A25A-FXS Oil And Oil Filter Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	OIL FILTER SUB-ASSEMBLY	*2	OIL FILLER CAP SUB-ASSEMBLY
*3	GASKET	*4	OIL PAN DRAIN PLUG
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
