Components [12/2019 - 10/2022]

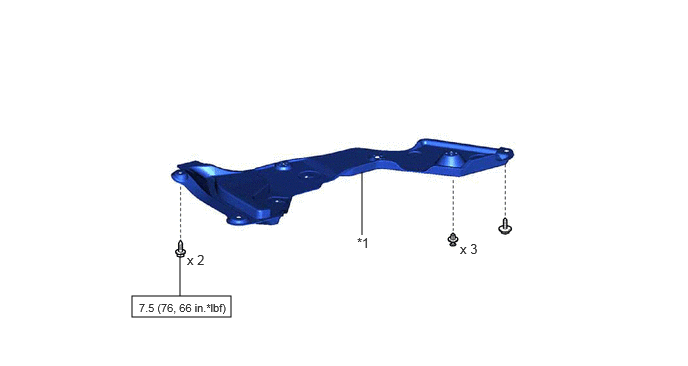

Fig 1: 2GR-FKS Oil And Oil Filter Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

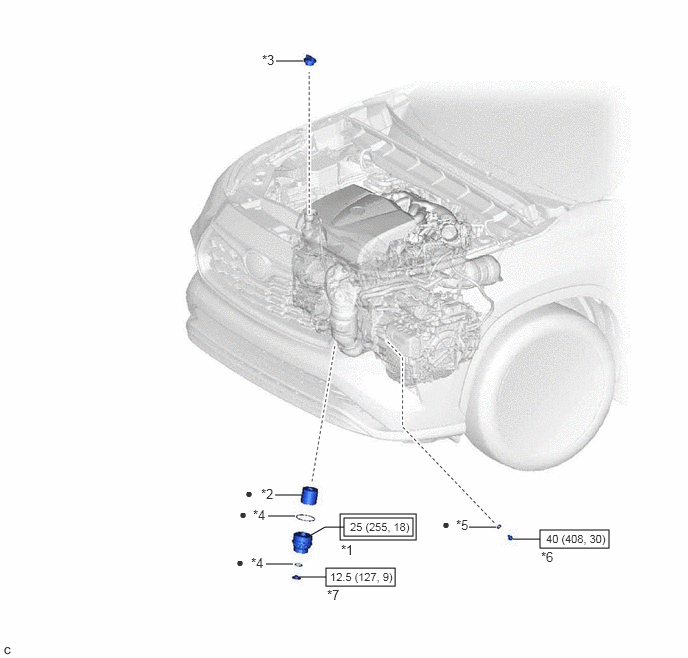

Fig 2: 2GR-FKS Oil And Oil Filter Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL FILTER CAP ASSEMBLY | *2 | OIL FILTER ELEMENT |
| *3 | OIL FILLER CAP SUB-ASSEMBLY | *4 | O-RING |
| *5 | GASKET | *6 | OIL PAN DRAIN PLUG |
| *7 | OIL FILTER DRAIN PLUG | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |
