Components [10/2022 - ]

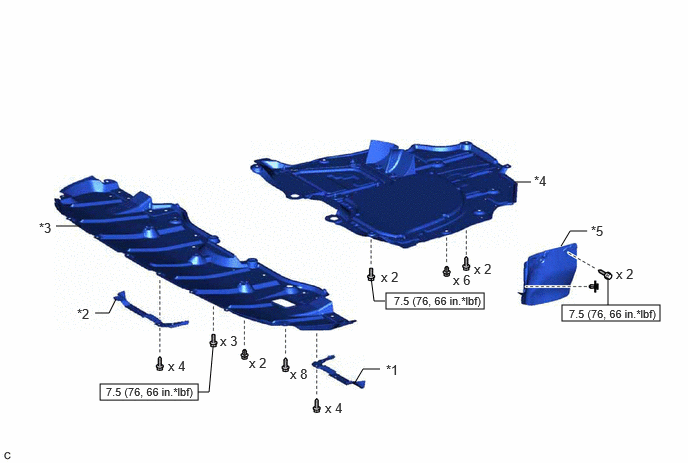

Fig 1: UA81E / UA81F Automatic Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *5 | FRONT FENDER APRON SEAL LH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

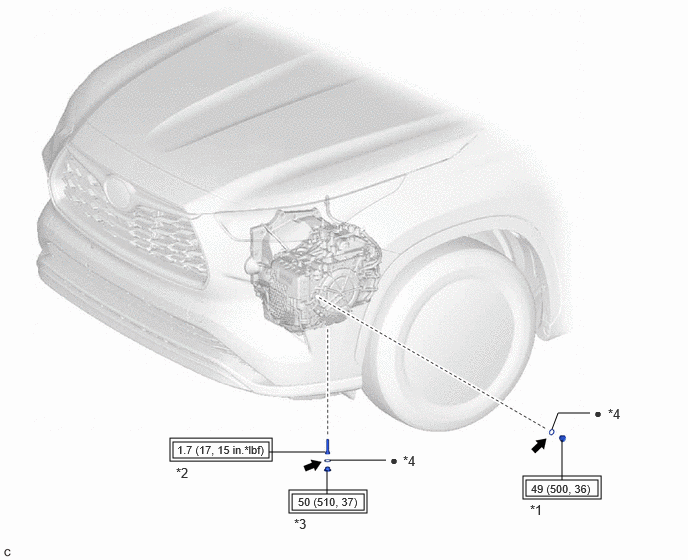

Fig 2: UA81E / UA81F Automatic Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Toyota Genuine ATF WS | - | - |
