Components [12/2019 - ]

Fig 1: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

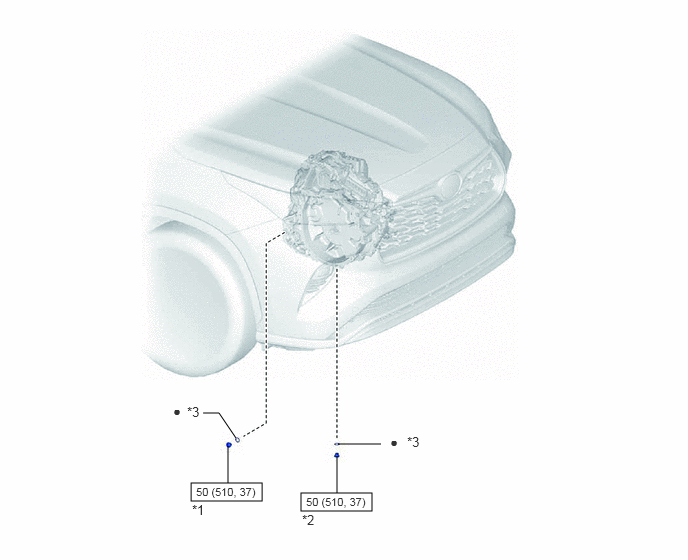

Fig 2: P810 Hybrid Transaxle Fluid Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FILLER PLUG	*2	DRAIN PLUG
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
