Maintenance - Service Information (1 Of 2)
>>
Q610 Hybrid Transaxle Fluid
>>
Components [12/2019 - ]
Components [12/2019 - ]

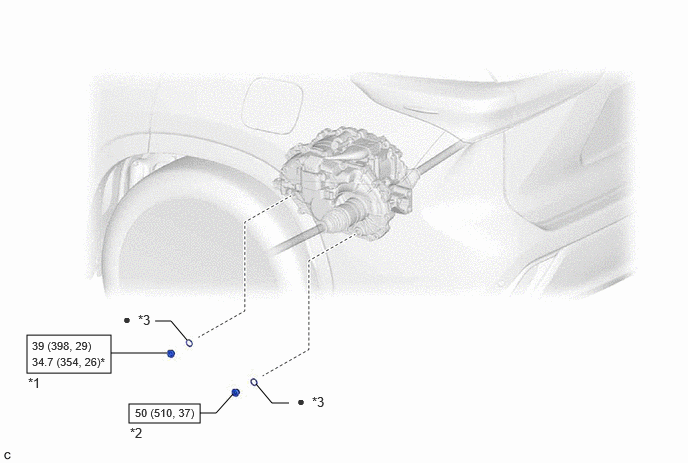

Fig 1: Q610 Hybrid Transaxle Fluid Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
FILLER PLUG
*2
DRAIN PLUG
*3
GASKET
-
-
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with a union nut wrench
•
Non-reusable part
-
-
