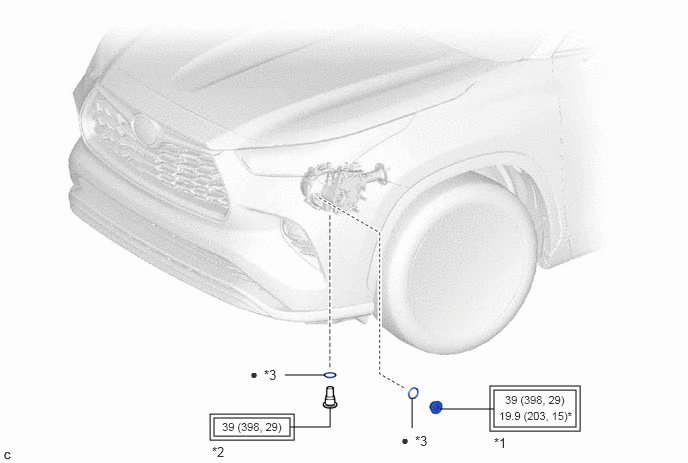

Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSFER FILLER PLUG | *2 | TRANSFER DRAIN PLUG |
| *3 | GASKET | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with SST and a union nut wrench |
| • | Non-reusable part | - | - |
