Replacement [12/2019 - 10/2022]: Procedure

  1. DRAIN TRANSFER OIL
    1. Stop the vehicle on a level surface.
    2. Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket from the transfer assembly.
      GTY943817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

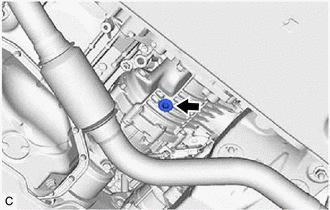

    3. Using a 10 mm hexagon socket wrench, remove the transfer drain plug and gasket from the transfer assembly and drain the transfer oil.
      GTY918142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, temporarily install the transfer filler plug and gasket to the transfer assembly.

      HINT:

      Reuse the old gasket as the transfer filler plug will be removed again.

    5. Using a 10 mm hexagon socket wrench, install the transfer drain plug and a new gasket to the transfer assembly.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

  2. ADD TRANSFER OIL
    1. Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket from the transfer assembly.
    2. Add transfer oil.

      Oil Type

      Toyota genuine differential gear oil LX

      Standard Capacity (for Reference)

      0.39 liters (0.41 US qts, 0.34 Imp. qts)

      NOTE:

      Using transfer oil other than the specified oil may cause abnormal noise or vibration, or damage the transfer of the vehicle.

    3. Pour transfer oil so that the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the transfer filler plug hole.
      GTY369781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 5 mm (0 to 0.197 in.)
      NOTE:
      • When adding transfer oil, pour it slowly.
      • Add transfer oil a little at a time, waiting several minutes between each addition of transfer oil.
      • Too much or too little transfer oil will lead to transfer problems.
    4. Wait approximately 5 minutes and check that the oil level has not changed.
    5. Using SST, a 10 mm straight hexagon wrench and 10 mm union nut wrench, install the transfer filler plug and a new gasket to the transfer assembly.
      GTY923577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 10 mm Straight Hexagon Wrench
      *b 10 mm Union Nut Wrench
      *c Torque Wrench Fulcrum Length
      • SST: 09961-00950

      Specified tightening torque

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      After adding transfer oil, drive the vehicle and recheck the oil level.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [12/2019 - 11/2023]

      • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 19.9 N.m (203 kgf/cm, 15 ft.lbf)
  3. INSPECT FOR TRANSFER OIL LEAK
