Lane Control System - Diagnostic Codes & Circuit Tests
>>
Lane Control System
>>
Steering Pad Switch Circuit [12/2019 - 09/2020]
>>
Wiring Diagram
Steering Pad Switch Circuit [12/2019 - 09/2020]: Wiring Diagram

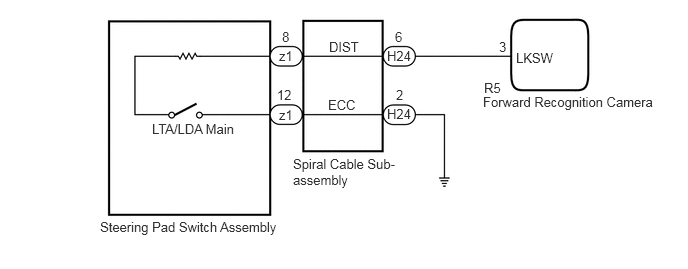

Fig 1: Steering Pad Switch Circuit [12/2019 - 09/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
