Parts Location [12/2019 - 10/2022]: Illustration
| *A | w/ Quick Heater | - | - |

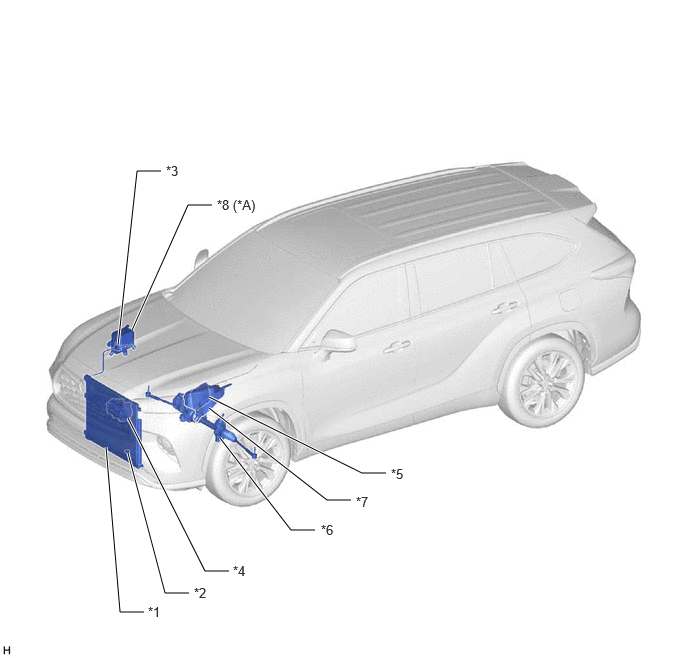

| *1 | COOLER CONDENSER ASSEMBLY | *2 | AMBIENT TEMP. SENSOR (THERMISTOR ASSEMBLY) |
| *3 | AIR CONDITIONER PRESSURE SENSOR | *4 | COMPRESSOR AND MAGNETIC CLUTCH - COOLER COMPRESSOR ASSEMBLY - MAGNET CLUTCH ASSEMBLY |
| *5 | ECM | *6 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - A/C COMP FUSE - A/C COMP RELAY - HTR FUSE - A/C RR FUSE |
*8 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - PTC HTR NO. 1 FUSE - PTC HTR NO. 2 FUSE - PTC HTR NO. 1 RELAY - PTC HTR NO. 2 RELAY |

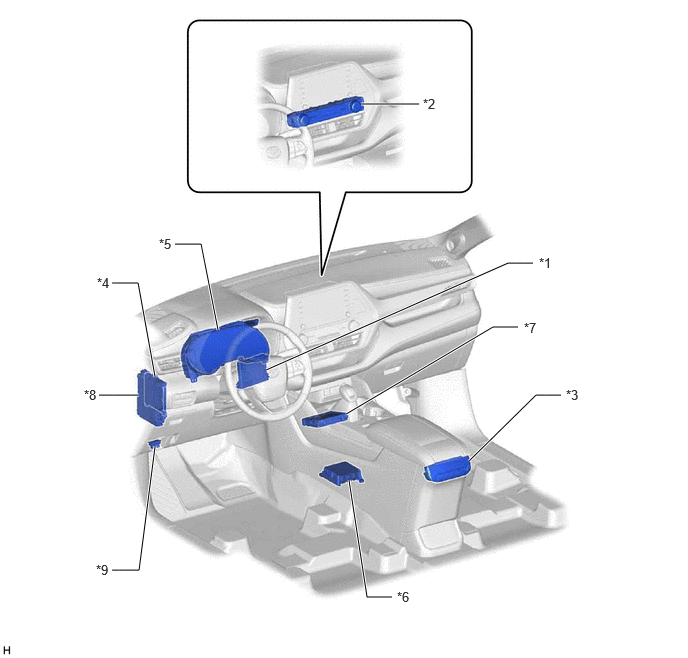

| *1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *2 | AIR CONDITIONING CONTROL ASSEMBLY |
| *3 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | COMBINATION METER ASSEMBLY | *6 | AIRBAG SENSOR ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-B NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
| *9 | DLC3 | - | - |
| *A | w/ Quick Heater | - | - |

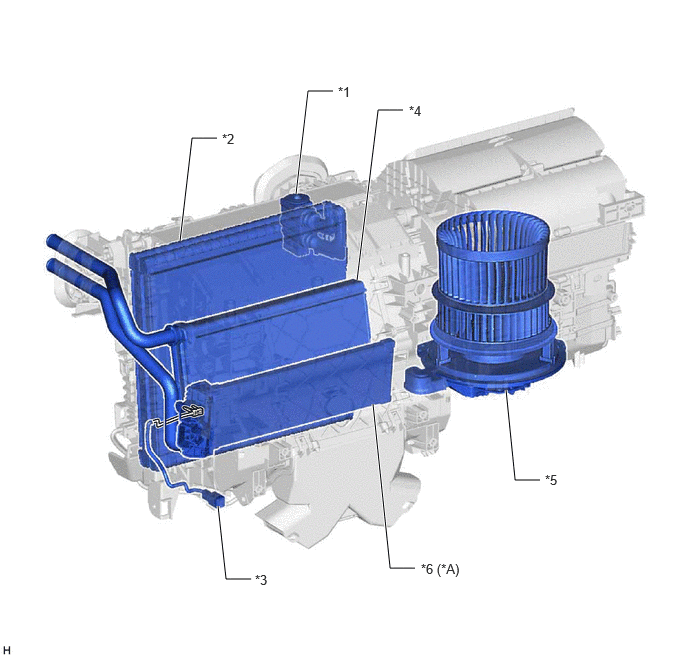

| *1 | COOLER EXPANSION VALVE | *2 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
| *3 | EVAPORATOR TEMP. SENSOR (NO. 1 COOLER THERMISTOR) | *4 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | QUICK HEATER ASSEMBLY |

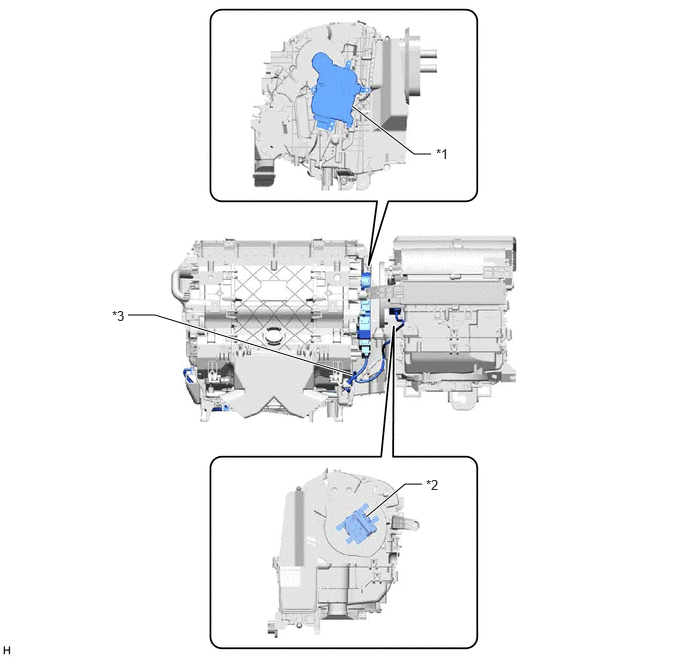

| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY |
| *3 | AIR CONDITIONING HARNESS ASSEMBLY | - | - |
| *1 | REAR COOLING UNIT EXPANSION VALVE | *2 | REAR EVAPORATOR SUB-ASSEMBLY |
| *3 | REAR HEATER RADIATOR UNIT SUB-ASSEMBLY | *4 | REAR BLOWER MOTOR CONTROL |
| *5 | REAR BLOWER MOTOR WITH FAN SUB-ASSEMBLY | - | - |
