AIR CONDITIONING SYSTEM (for Gasoline Model with Manual Air Conditioning System)
>>
DTC B1443: Air Outlet Damper Control Servo Motor Circuit [12/2019 - 10/2022]
>>

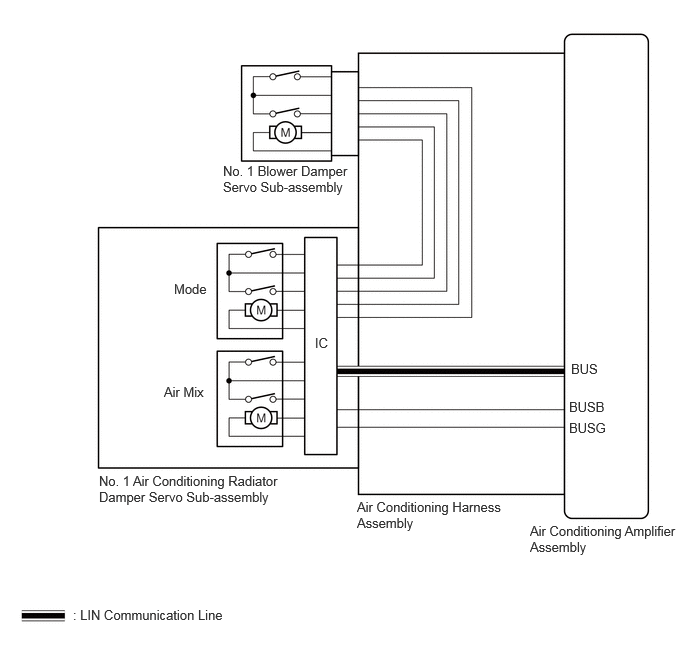

Wiring Diagram
DTC B1443: Air Outlet Damper Control Servo Motor Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
