Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heating / Air Conditioning System (Except HV, W/ Manual A/C) - Diagnostic Codes, Circuit Tests & Symptom Tests
>>
AIR CONDITIONING SYSTEM (for Gasoline Model with Manual Air Conditioning System)
>>
PTC Heater Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

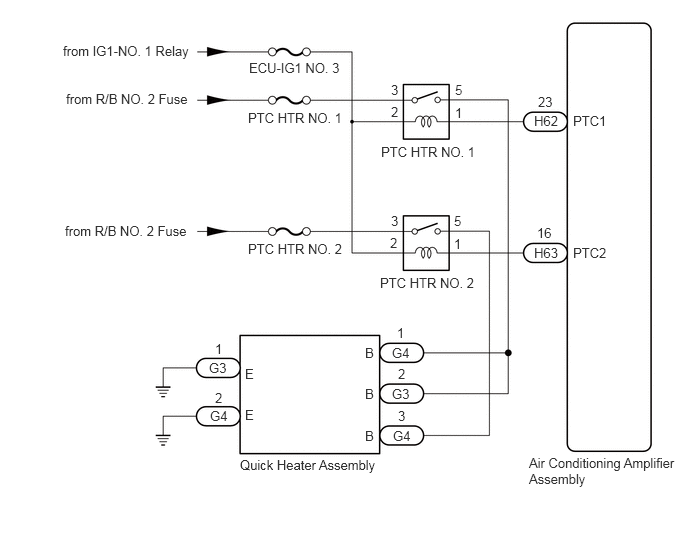

PTC Heater Circuit [12/2019 - 10/2022]: Wiring Diagram
