Components [10/2022 - ]

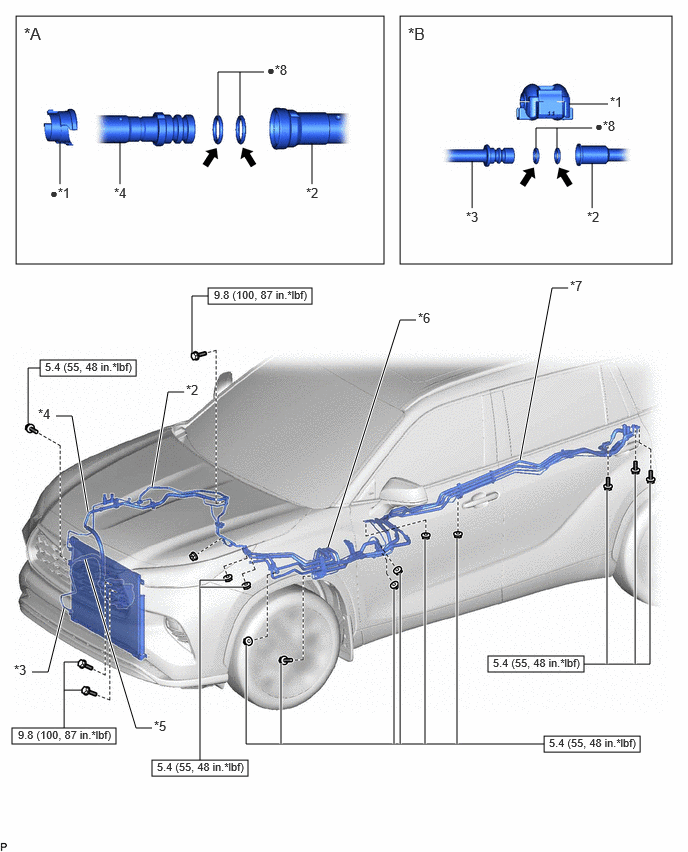

Fig 1: Refrigerant Line (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Low Pressure | *B | for High Pressure |
| *1 | PIPING CLAMP | *2 | NO. 2 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *3 | AIR CONDITIONING TUBE ASSEMBLY | *4 | SUCTION HOSE SUB-ASSEMBLY |
| *5 | DISCHARGE HOSE SUB-ASSEMBLY | *6 | NO. 1 AIR CONDITIONING ACCESSORY ASSEMBLY |
| *7 | NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY | *8 | O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent | - | - |

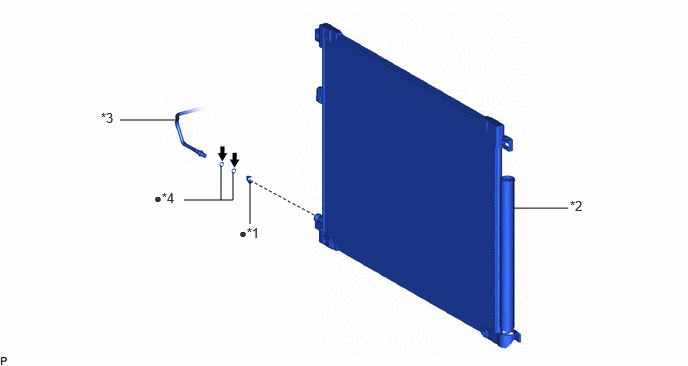

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PIPING CLAMP | *2 | COOLER CONDENSER ASSEMBLY |
| *3 | AIR CONDITIONING TUBE ASSEMBLY | *4 | O-RING |
| • | Non-reusable part | |
Compressor oil ND-OIL 12 or equivalent |
