Reassembly [12/2019 - ]: Procedure

  1. INSTALL COOLER DRYER
    1. Using pliers, install a new cooler dryer to the modulator.
      GTY938514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Modulator
    2. for Gasoline Model:

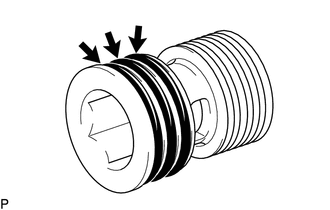

      GTY875912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

        Compressor Oil

        ND-OIL 12 or equivalent

        NOTE:

        Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.

    3. for HV Model:

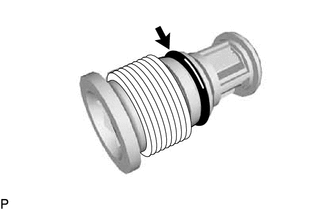

      GTY655809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Sufficiently apply compressor oil to the O-ring and the fitting surfaces of a new cap.

        Compressor Oil

        ND-OIL 11 or equivalent

        NOTE:

        Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.

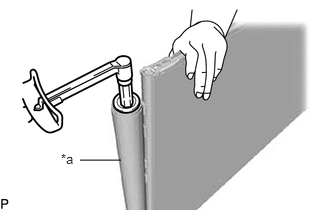

    4. Using a 14 mm straight hexagon, install the cap to the modulator.
      GTY916030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Modulator

      for Gasoline Model

      Torque: 4.0 N.m (41 kgf/cm, 3 ft.lbf)

      for HV Model

      Torque: 2.9 N.m (30 kgf/cm, 2 ft.lbf)
