Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

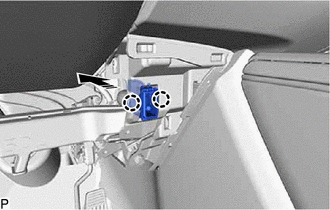

    1. Disengage the 2 claws as shown in the illustration.
      GTY865469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

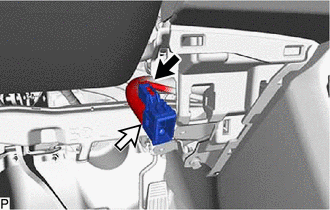

    2. Disconnect the connector and aspirator to remove the cooler (room temp. sensor) thermistor.
      GTY918128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
