Installation [12/2019 - ]: Procedure

  1. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the connector and aspirator.

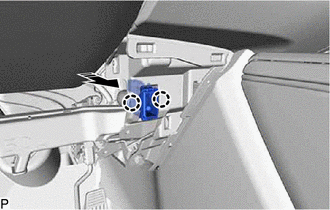

    2. Engage the 2 claws to install the cooler (room temp. sensor) thermistor as shown in the illustration.
      GTY869347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
