Removal [11/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    except Sport Package:

    Refer to REMOVAL [11/2023 - ]

    for Sport Package:

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE THERMISTOR ASSEMBLY (w/o Grille Shutter)
    1. Disengage the clamp.

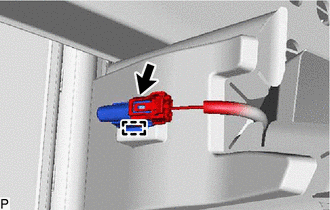

      GTY923667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
  3. REMOVE THERMISTOR ASSEMBLY (w/ Grille Shutter)
    1. Disengage the clamp.

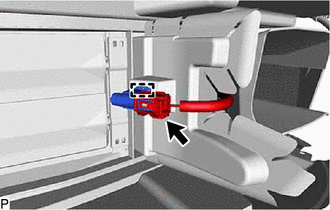

      GTY1120761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
