Installation [12/2019 - 10/2022]: Procedure
- INSTALL NO. 1 COOLER THERMISTOR

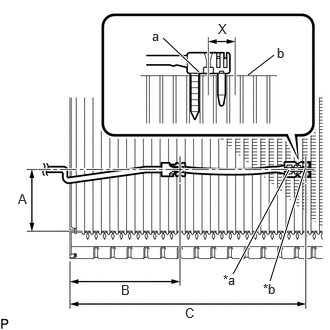

- Install the No. 1 cooler thermistor as shown in the illustration.
*a Securing Part *b Sensor Part Installation Position
Part Length A 50.0 mm (1.97 in.) B 87.9 mm (3.46 in.) C 188.3 mm (7.41 in.) NOTE:- Be sure to insert the No. 1 cooler thermistor only once because reinserting it into the same position will not allow it to be firmly secured.
- When reusing the No. 1 cooler evaporator sub-assembly, insert the No. 1 cooler thermistor one row next to the one that has been used previously (X in the illustration).
- After inserting the No. 1 cooler thermistor, do not apply excessive force to the wire.
- Directly insert the No. 1 cooler thermistor until the edge of the plastic case "a" comes into contact with the No. 1 cooler evaporator sub-assembly "b".
- Install the No. 1 cooler thermistor as shown in the illustration.
- INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL COOLER EXPANSION VALVE
Refer to PROCEDURE - Step 3
- INSTALL COOLING UNIT PARTS
Refer to PROCEDURE - Step 4
- INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL HEATER CLAMP
Refer to PROCEDURE - Step 6
- INSTALL HEATER GROMMET
Refer to PROCEDURE - Step 7
- INSTALL NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- INSTALL AIR CONDITIONING HARNESS ASSEMBLY
Refer to PROCEDURE - Step 12
- INSTALL BLOWER ASSEMBLY
Refer to INSTALLATION [12/2019 - ]
