Components [12/2019 - ]

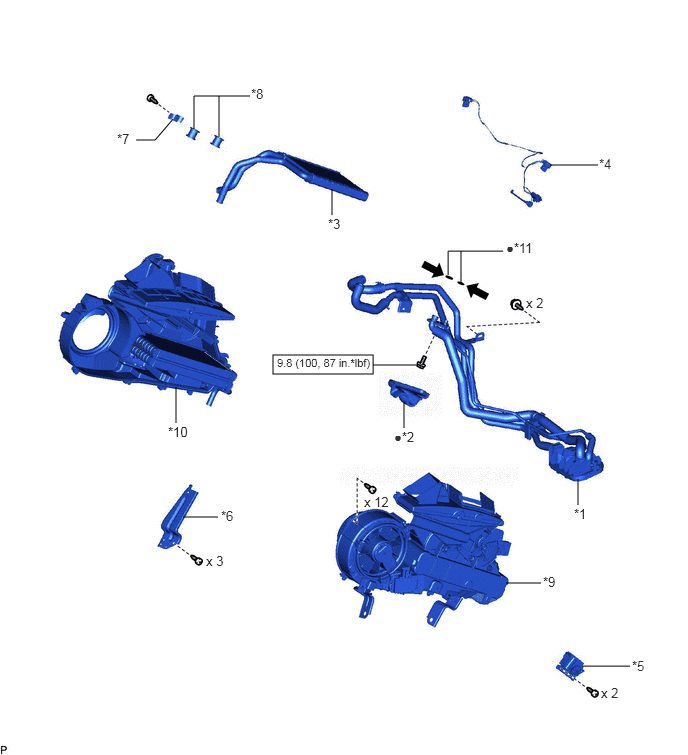

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CONDITIONING HOSE AND ACCESSORY | *2 | AIR DUCT PACKING |
| *3 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *4 | NO. 2 AIR CONDITIONING HARNESS ASSEMBLY |
| *5 | REAR AIR MIX DAMPER SERVO SUB-ASSEMBLY | *6 | BRACKET |
| *7 | CLAMP | *8 | BUSH |
| *9 | REAR COOLING UNIT COVER LH | *10 | REAR COOLING UNIT COVER RH |
| *11 | O-RING | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
for Gasoline Model: Compressor oil ND-OIL 12 or equivalent for HV Model: Compressor oil ND-OIL 11 or equivalent |
- | - |
