System Diagram [12/2019 - 09/2020]

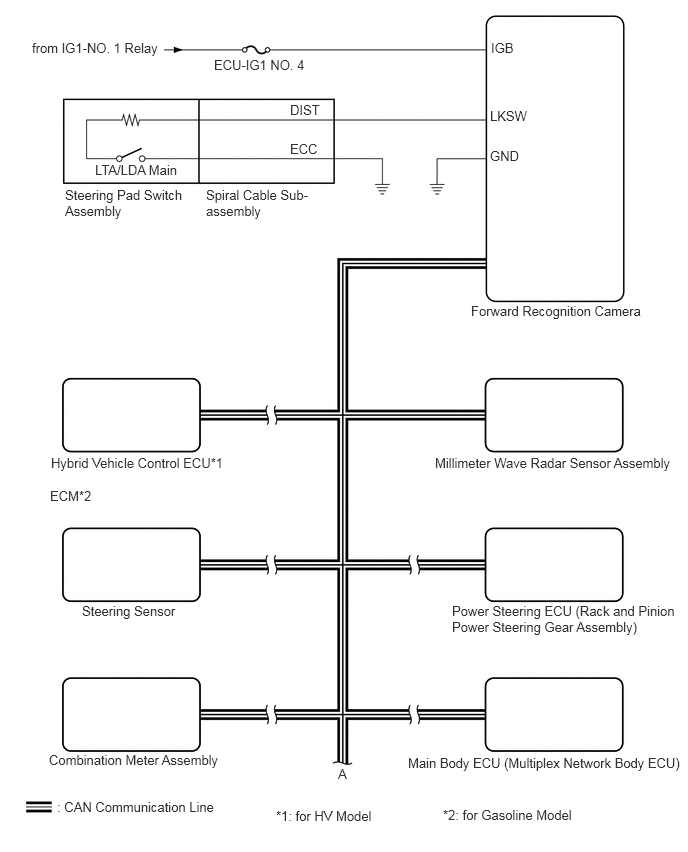

Fig 1: Lane Control System Diagram [12/2019 - 09/2020] (1 Of 2)
GTY873993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lane Control System Diagram [12/2019 - 09/2020] (2 Of 2)
GTY890374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    Fig 3: Local Bus [12/2019 - 09/2020]
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
