Components [12/2019 - 10/2022]

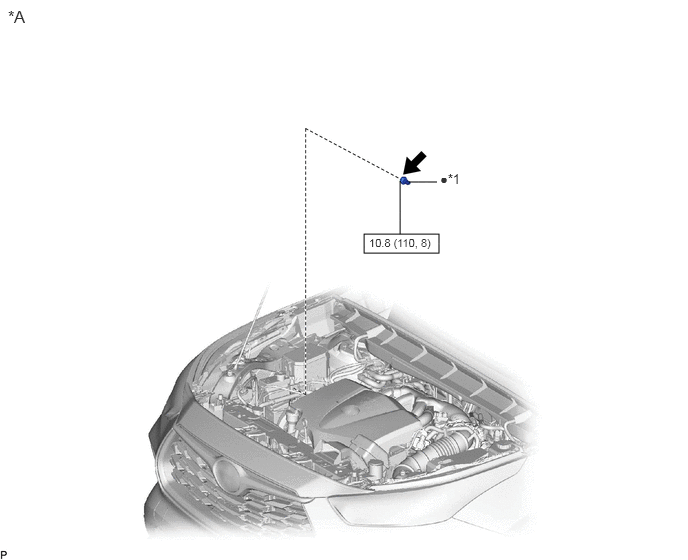

Fig 1: Air Conditioning Pressure Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Gasoline Model | - | - |
| *1 | AIR CONDITIONER PRESSURE SENSOR | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent | - | - |

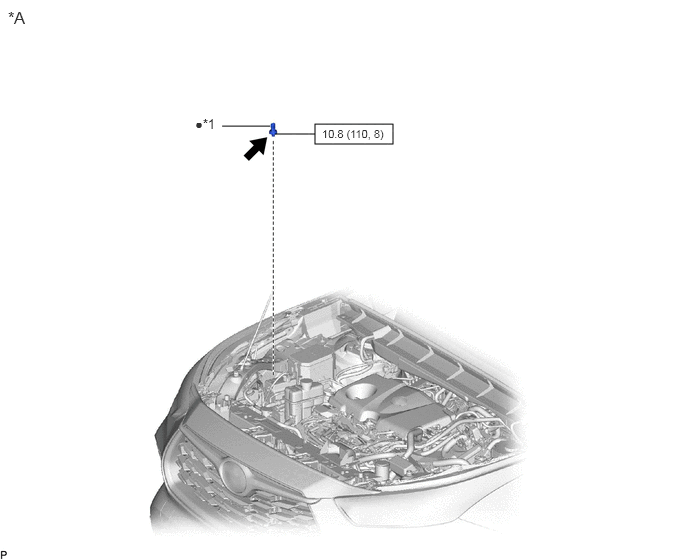

Fig 2: Air Conditioning Pressure Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | AIR CONDITIONER PRESSURE SENSOR | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Compressor oil ND-OIL 11 or equivalent | - | - |
