Removal [10/2022 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR CONDITIONER PRESSURE SENSOR

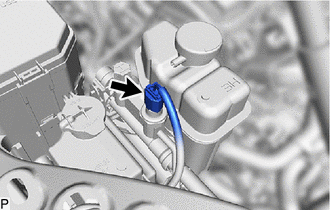

    1. Disconnect the connector.
      GTY1119596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

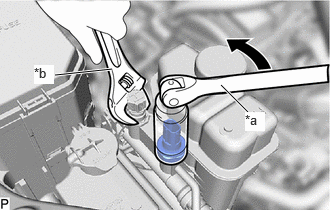

    2. Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.
      GTY1121333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
