System Diagram [09/2020 - 11/2023]

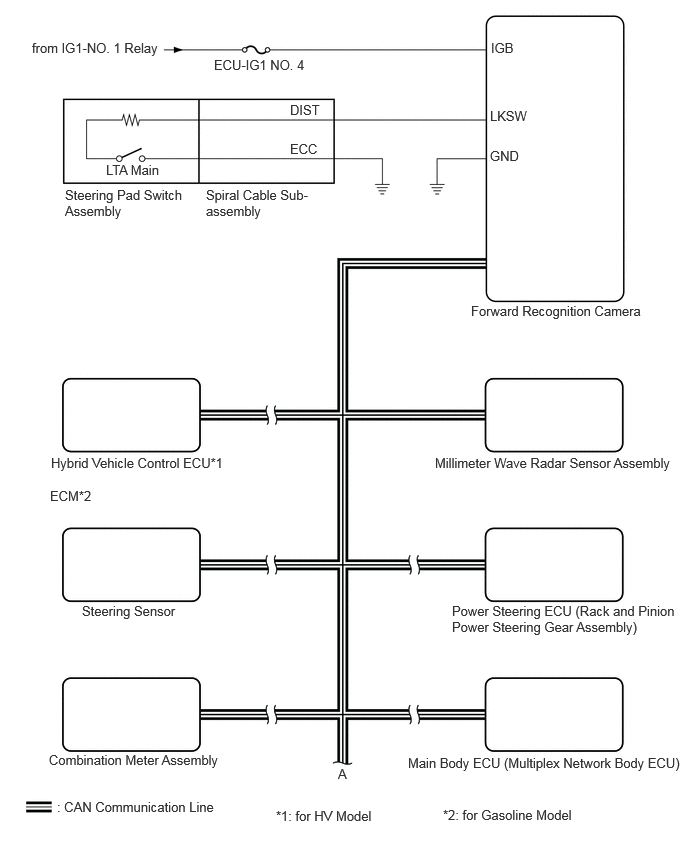

Fig 1: Lane Control System Diagram [09/2020 - 11/2023] (1 Of 2)
GTY995691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lane Control System Diagram [09/2020 - 11/2023] (2 Of 2)
GTY890374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    Fig 3: Local Bus [09/2020 - 11/2023]
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
