Components [12/2019 - 10/2022]

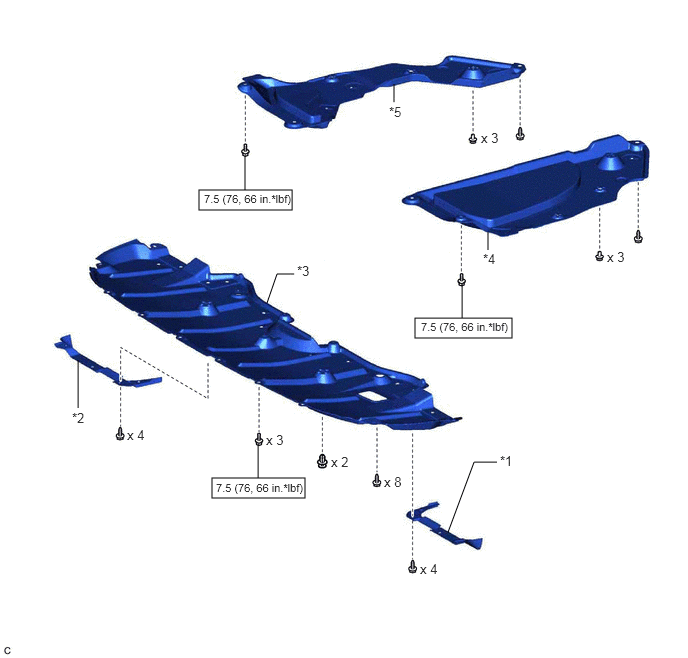

Fig 1: Heater Water Pump Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | REAR ENGINE UNDER COVER LH |
| *5 | REAR ENGINE UNDER COVER RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Heater Water Pump Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHEILD SEAL FRONT RH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

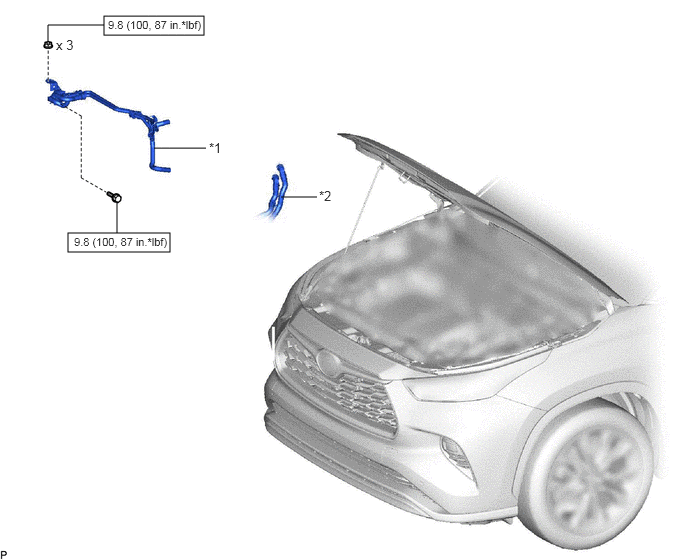

Fig 3: Heater Water Pump Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HEATER WATER PUMP ASSEMBLY | *2 | WATER BY-PASS HOSE ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
