Components [10/2022 - ]

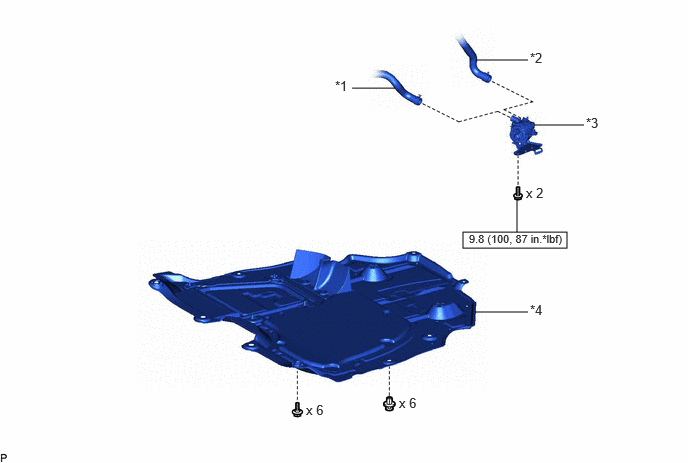

Fig 1: Heater Water Pump Replacement Components With Torque Specifications [10/2022 - ]
GTY1119809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEATER WATER HOSE A *2 HEATER WATER HOSE B
*3 HEATER WATER PUMP ASSEMBLY *4 NO. 2 ENGINE UNDER COVER ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
