Installation [10/2022 - ]: Procedure

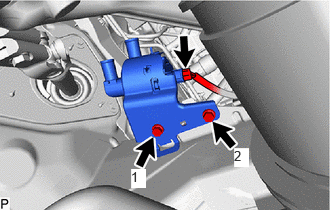

1. Install the heater water pump assembly with the 2 bolts.
   Fig 1: Heater Water Pump Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

   HINT:

   Tighten the bolts in the order shown in the illustration.

2. Connect the connector.

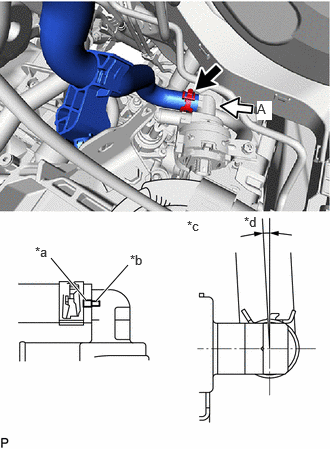

1. Align the markings on heater water hose B and heater water pump assembly as shown in the illustration and engage the clip within the area shown in the illustration.
   NOTE:

   Do not apply excessive force to the water hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Marking (Dent)
   *b	Marking
   *c	View A
   *d	Clip Installation Angle (26.8 to 33.2°)

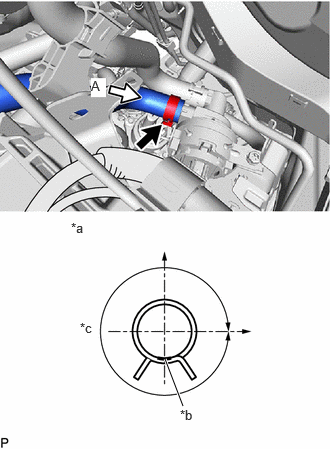

1. Connect the heater water hose A with the marking facing down and engage the clip within the area shown in the illustration.
   NOTE:

   Do not apply excessive force to the water hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A
   *b	Marking (White)
   *c	Clip Installation Angle (360°)

2. Engage the 2 claws to connect the hose clamp and wire harness.

Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]

Refer to PROCEDURE - Step 84 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 84 [11/2023 - ]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1
