Components [10/2022 - ]

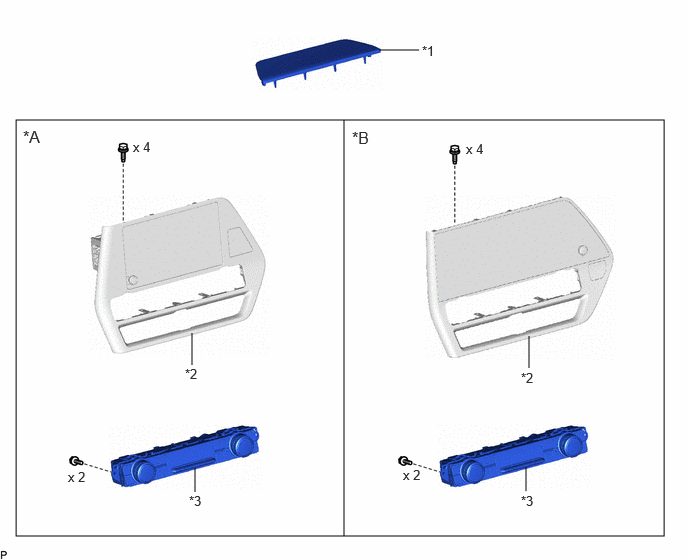

Fig 1: Air Conditioning Panel Replacement Components [10/2022 - ]
GTY1120297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 8 Inch Display *B for 12.3 Inch Display
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *2 RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL
*3 AIR CONDITIONING CONTROL ASSEMBLY - -
