Removal [10/2022 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 22 [11/2023 - ]

  2. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 3 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  3. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 9 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 9 [11/2023 - ]

  4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

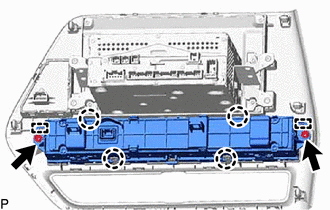

    1. Remove the 2 screws.
      GTY918144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and 2 guides to remove the air conditioning control assembly.
