Components [12/2019 - ]

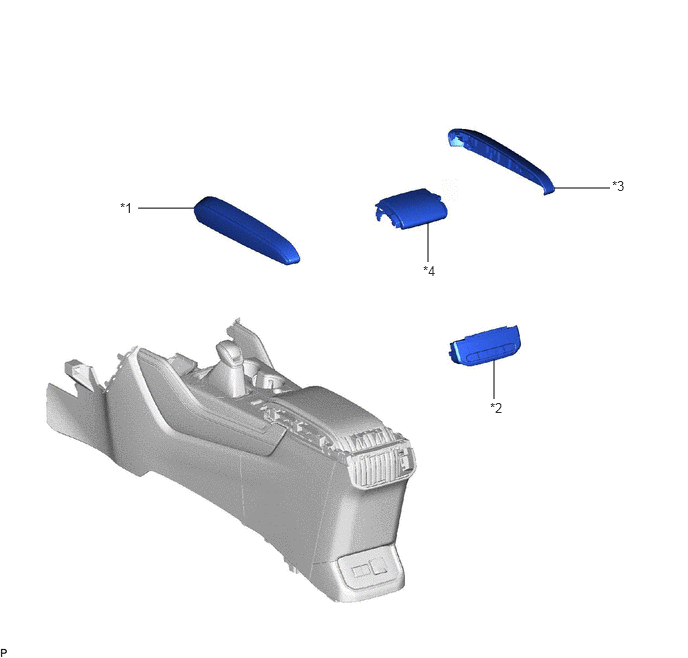

Fig 1: Rear Air Conditioning Panel Replacement Components
GTY915381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CONSOLE BOX CUSHION *2 NO. 2 AIR CONDITIONING CONTROL ASSEMBLY
*3 NO. 2 CONSOLE BOX CUSHION *4 REAR CONSOLE COVER
