Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  3. REMOVE ACCELERATOR PEDAL (W/SENSOR) ROD ASSEMBLY

    for T24A-FTS:

    Refer to REMOVAL [10/2022 - ]

    for A25A-FXS:

    Refer to REMOVAL [12/2019 - ]

  4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 39

  5. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 41

  6. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

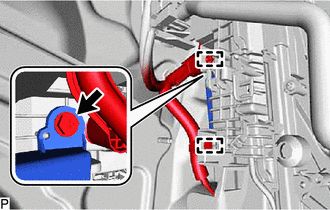

    1. Disengage the 2 clamps.
      GTY918125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

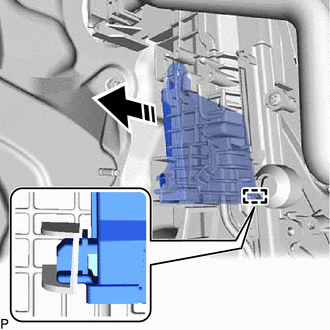

    2. Remove the screw.
    3. Disengage the guide as shown in the illustration.
      GTY927820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

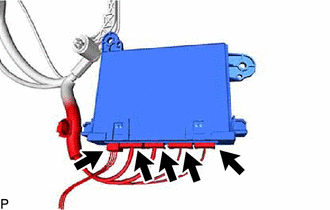

    4. Disconnect the 5 connectors to remove the air conditioning amplifier assembly.
      GTY918122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
