Components [12/2019 - ]

Fig 1: Steering Pad Replacement Components (1 Of 2)
GTY914806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for HV Model - -
*1 BATTERY SERVICE HOLE COVER - -

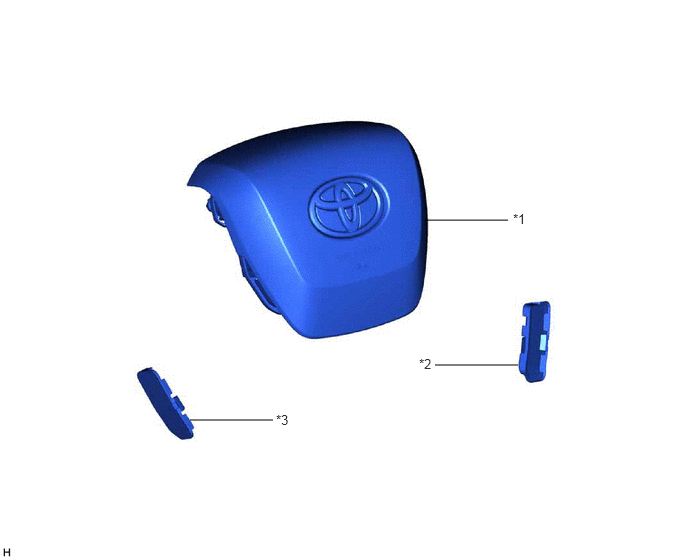

Fig 2: Steering Pad Replacement Components (2 Of 2)
GTY855688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HORN BUTTON ASSEMBLY *2 LOWER NO. 2 STEERING WHEEL COVER
*3 LOWER NO. 3 STEERING WHEEL COVER - -
