Components [12/2019 - ]

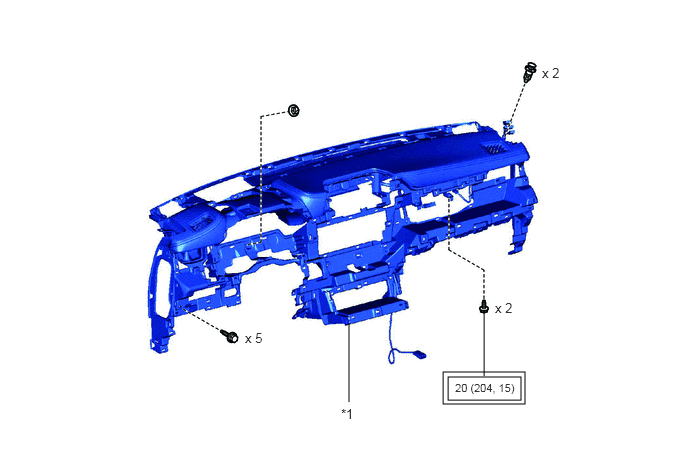

Fig 1: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

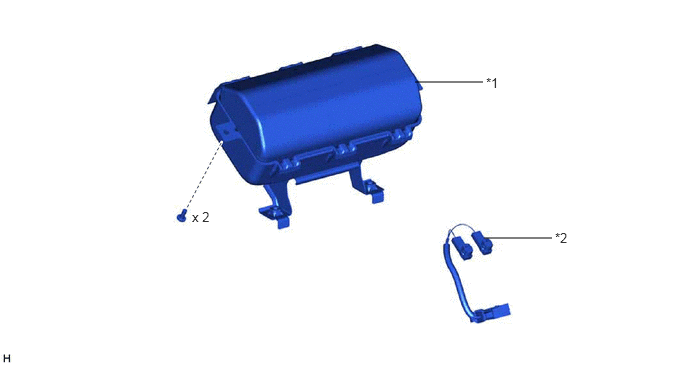

Fig 2: Front Passenger Airbag Assembly Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*1	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	*2	NO. 2 INSTRUMENT PANEL WIRE
