Components [12/2019 - ]

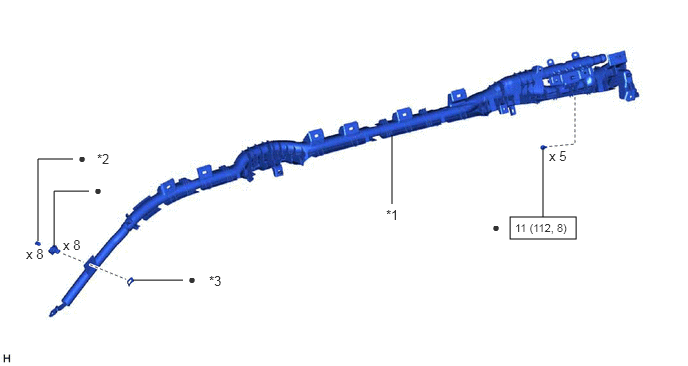

Fig 1: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications
GTY884866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CURTAIN SHIELD AIRBAG ASSEMBLY *2 PIN
*3 SPACER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
